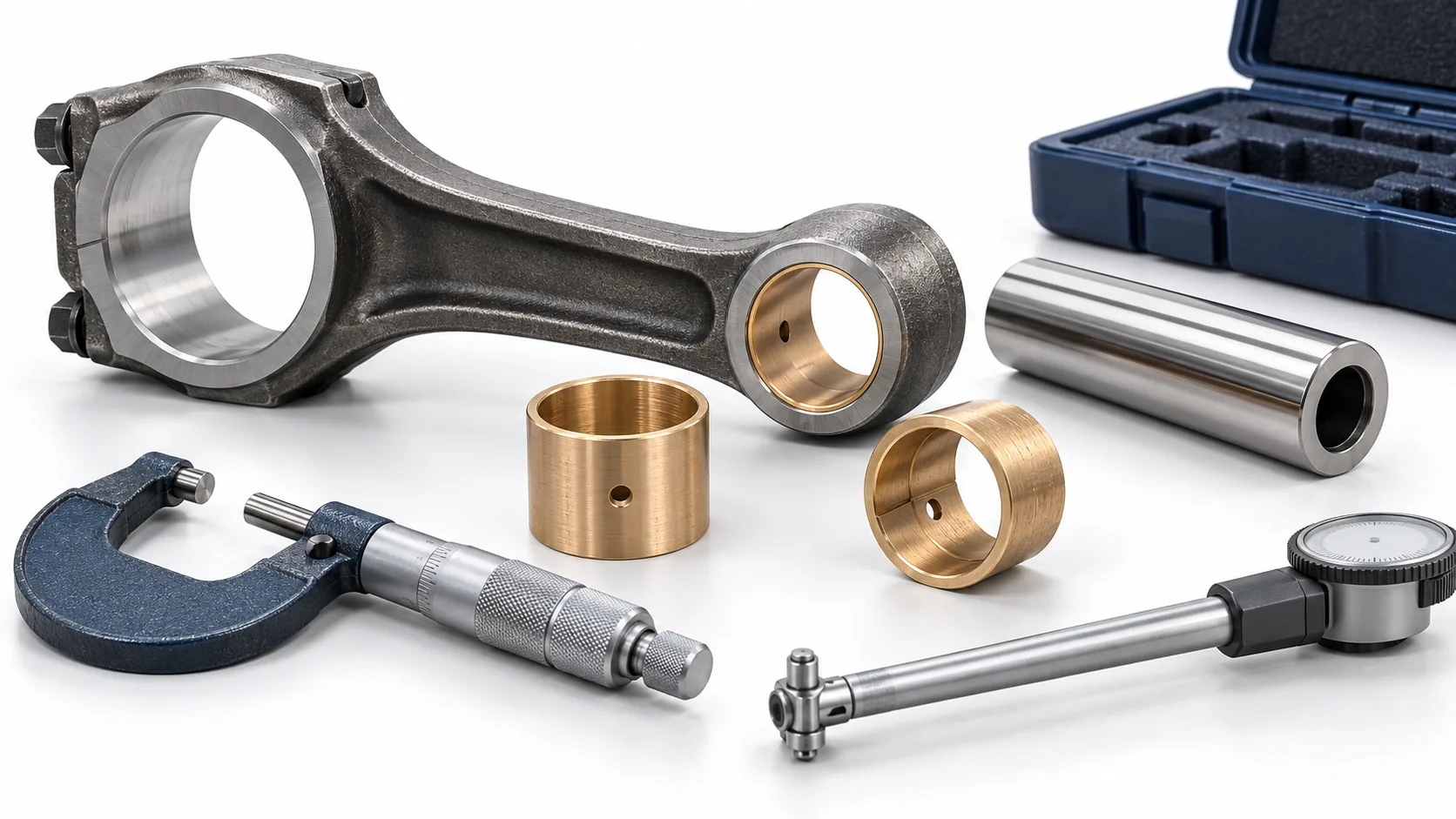

AI-generated editorial illustration.

A connecting-rod bushing is inexpensive compared with a piston, connecting rod or crankshaft, but it controls the piston pin at one of the most heavily loaded joints in a diesel engine. The Sea Keepers approved catalogue records Cummins Onan standard connecting-rod bushing 185-5571 / A046X327 as SK-00015 for specified generator-engine applications. This guide explains what to inspect during overhaul, why the word standard matters and what information is needed before the part is ordered.

What the small-end bushing does

The bushing is pressed into the small end of the connecting rod and provides a replaceable bearing surface for the piston pin. Its oil clearance must be large enough to maintain a lubricating film but small enough to hold the piston square in the cylinder. Excessive clearance can produce a knock, unstable piston motion and accelerated wear at the pin bosses. Insufficient clearance can wipe away the oil film, overheat the pin and seize the joint. Correct performance therefore depends on the bushing, rod bore, piston pin and lubrication passage as one matched system.

Why standard size needs confirmation

The approved record describes 185-5571 / A046X327 as a standard bushing. Standard normally distinguishes it from repair or oversize alternatives, but it does not confirm that a used connecting rod still has a standard housing bore or that its piston pin is reusable. Identify the generator model, complete specification letter and serial number, then confirm the rod and piston-pin references in the applicable Cummins Onan parts list. If the rod has been previously repaired, record any machining marks or non-standard dimensions before choosing the replacement.

Inspect the rod before pressing out the old bush

Mark the cylinder position and orientation of the rod, clean the assembly and check the small end for heat colour, fretting and cracks. Measure the piston pin in several planes and compare the unworn ends with the loaded centre. Before removal, note the position of every oil hole, groove, split line and chamfer in the existing bush. After pressing it out with supported tooling, inspect the rod bore for scoring, ovality or evidence that the bush has turned. A loose or distorted housing cannot be corrected simply by fitting a new standard bush.

Measure the interference and finished bore

Measure the rod housing bore and the replacement bushing outside diameter with calibrated instruments. Their difference establishes the press fit; use the engine manual's limit rather than a generic interference value. Press the bushing squarely with a mandrel that supports its full face and align the oil drilling with the passage in the rod. The bore can close slightly after installation, so measure it again in several directions. Where the maker procedure requires finish reaming or honing, complete that operation before checking piston-pin running clearance.

Check the piston pin and oil path together

A new bushing fitted around a worn or tapered pin will not restore the joint. Check pin diameter, straightness and surface finish, and replace it if scoring, pitting or blue heat marks are present. Pass clean oil or air through the rod drilling to confirm that the feed is open and that the new bush has not partly covered it. Lubricate the finished bore with clean engine oil before assembling the pin; never test a precision plain bearing dry.

Plan the overhaul as a set

If one bushing has reached its wear limit, inspect the other connecting rods under the same running-hour history. Record each rod and pin measurement by cylinder so parts can be ordered as a controlled set without mixing components. During a generator overhaul, it is also practical to group the bushings with gearcase parts, gaskets, piston-pin hardware and crankcase-breather service items. That reduces freight and avoids extending the shutdown for one small component.

Final assembly checks

Follow the maker procedure for rod orientation, piston-pin retention, bearing-cap pairing and bolt tightening. Confirm that the pin moves as specified after lubrication, that the rod swings freely without side binding and that every oil passage remains open. Once the generator is returned to service, monitor oil pressure, temperature, vibration and abnormal mechanical noise during the first loaded run, then retain the measured clearances in the maintenance record.

Send a complete enquiry

State the Cummins Onan generator model, specification letter and serial number, part references 185-5571 / A046X327, Sea Keepers code SK-00015, quantity, connecting-rod and piston-pin references, measured rod bore and pin diameter, whether standard or repair size is required, documentation needs and delivery port. The approved product page and related overhaul guides below provide the catalogue identity and the wider procurement context.
