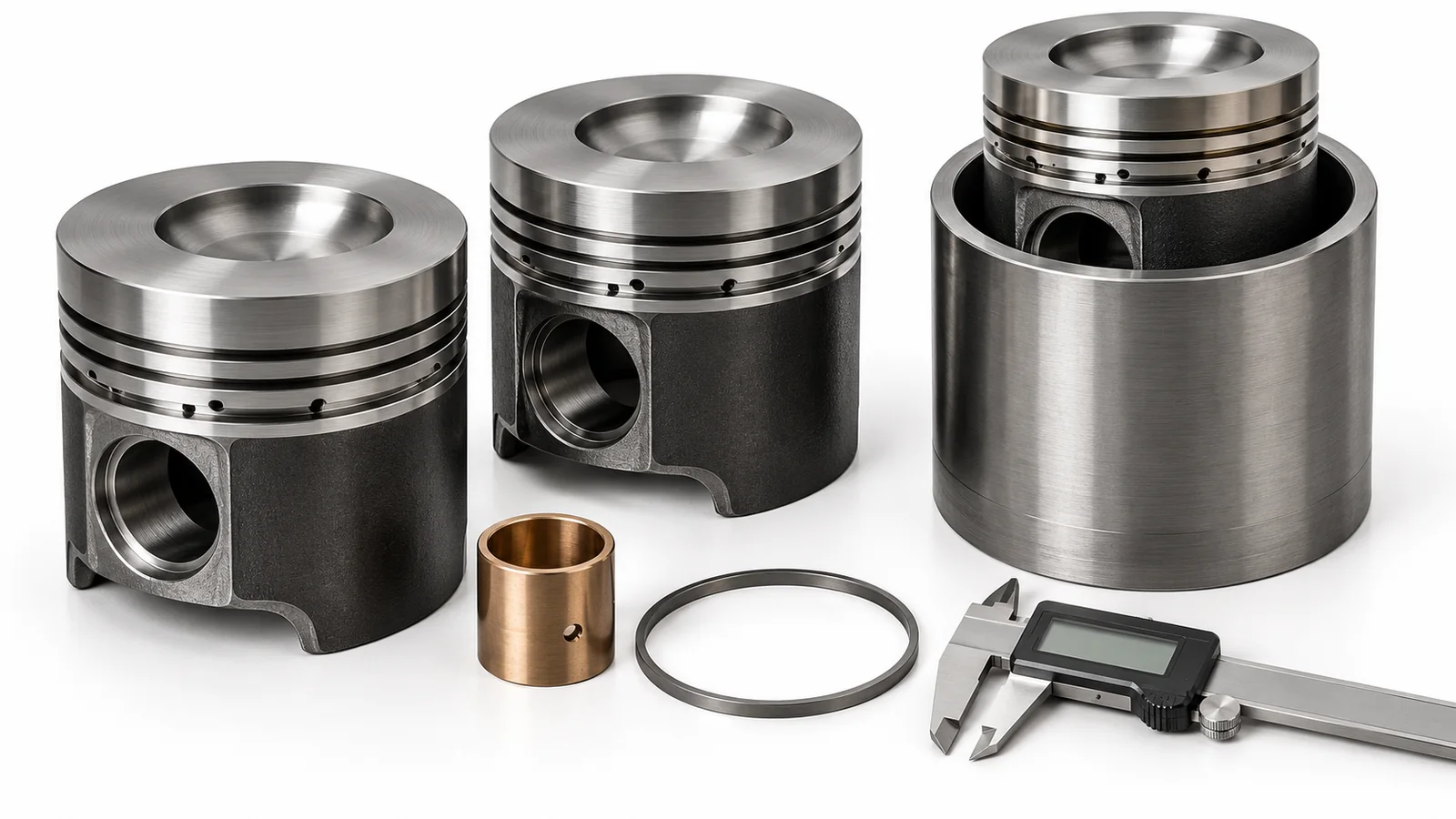

A piston body is the structural part of a piston assembly: the crown and skirt that carry combustion load into the pin and connecting rod. In Caterpillar parts language a "body as piston" is that component on its own, without rings, pin and retainers, and in modern heavy-duty engines it is usually forged alloy steel rather than aluminium. The Sea Keepers approved catalogue holds three Cat piston-body records, SK-00006 (557-5686), SK-00007-AV (567-1478) and SK-00008 (319-6715), together with the small parts that are easy to leave off an order. This guide shows how to match them to an engine without guessing.

Know which piston construction the engine uses

Diesel pistons come as one-piece aluminium, two-piece articulated designs with a steel crown and aluminium skirt, and one-piece steel bodies. The approved records list microalloy and alloy steel for 567-1478 and alloy steel for 319-6715, which places them in the steel-body group. A steel body must be paired with the pin, retainers, ring set and connecting rod intended for it; mixing a steel crown with components from an aluminium design is not a substitution, even where the bore is the same.

Read the compatible-model lists carefully

The record for 567-1478 lists the C9.3 marine engine alongside C9.3 industrial engines, 3516B industrial engines, XQ330 and C9.3 generator sets, power modules and reclaimer and excavator applications. The record for 319-6715 lists the C18 family: marine engine, generator set, industrial engine, power module and petroleum generator set. These lists show that one part number can serve marine, industrial and generator arrangements of the same engine family, but they do not mean every C9.3 or C18 uses that piston. The engine serial number prefix and arrangement number decide, so send them with every enquiry.

Use the published dimensions as a check, not a selector

The 319-6715 record gives a 72 mm compression height, a 114.98 mm maximum skirt diameter, a length of 7.55 inches and a height of 6.85 inches. Measure the removed piston body and compare. Compression height sets the piston crown position at top dead centre and therefore deck clearance and compression ratio, so a different figure means a different engine build even when the bore matches. Where a record carries no dimensions, such as 557-5686, rely on the serial number and parts book and ask the supplier to confirm the fit before dispatch.

Piston body, complete piston or sleeve-and-piston assembly

The SK-00008 record is described as a piston and cylinder sleeve assembly, that is, the liner and the matched piston supplied together. An assembly removes the risk of pairing a new piston with a worn or mismatched liner and simplifies installation during a full overhaul. A piston body alone is the economical choice when the liner has been measured and is within limits and the rings, pin and retainers are being ordered separately. State clearly which of the three you need and ask the supplier to quote the alternatives so the decision is made on evidence and price.

Do not forget the small fit parts

A liner band or band filler sits around the cylinder liner and fills the specified clearance so the liner seats as designed. The approved Cat band filler 9L-5854 (SK-00005) is listed for 3456 and C18 marine engines, a thin part of roughly 6 by 8 inches and 0.08 inch thick that weighs almost nothing and is routinely missed on parts lists. Small bushes behave the same way: the approved Cummins Onan connecting rod bushing 185-5571 / A046X327 (SK-00015) is a standard-size bush that must be ordered in the correct size class and finished to the pin fit the manual specifies. Include every band, bush, ring set, pin, retainer and rod bolt the maker's assembly procedure calls for.

Inspect the removed piston to explain the failure

Photograph each removed piston body with its cylinder number before cleaning. Crown erosion and cracking point to injection, timing or cooling problems; ring-land damage and heavy carbon suggest blow-by and oil control issues; skirt scuffing indicates lubrication or clearance problems; pin-bore wear shows up as ovality. Replacing the piston without addressing the cause repeats the failure, so record what was found and send it with the enquiry.

Build a traceable piston RFQ

Send the engine model, complete serial number, arrangement number, cylinder positions, quantity, whether new or remanufactured parts are acceptable, and whether the requirement is a piston body, a complete piston or a sleeve-and-piston assembly. List the liner, band filler, bushing, ring set, pins and retainers separately so nothing is assumed, and state the documentation, packing and delivery port required. The approved product pages below give the catalogue identity for each item.

Use the approved records with the wider overhaul plan

Pair the SK-00006, SK-00007-AV and SK-00008 piston records with the approved Cat cylinder liner 126-0739, the band filler and the bushing records, and follow the liner inspection guide, the Caterpillar parts buying guide and the engine overhaul planning guide linked below when preparing a full rebuild list.
