Marine Pilot Chairs

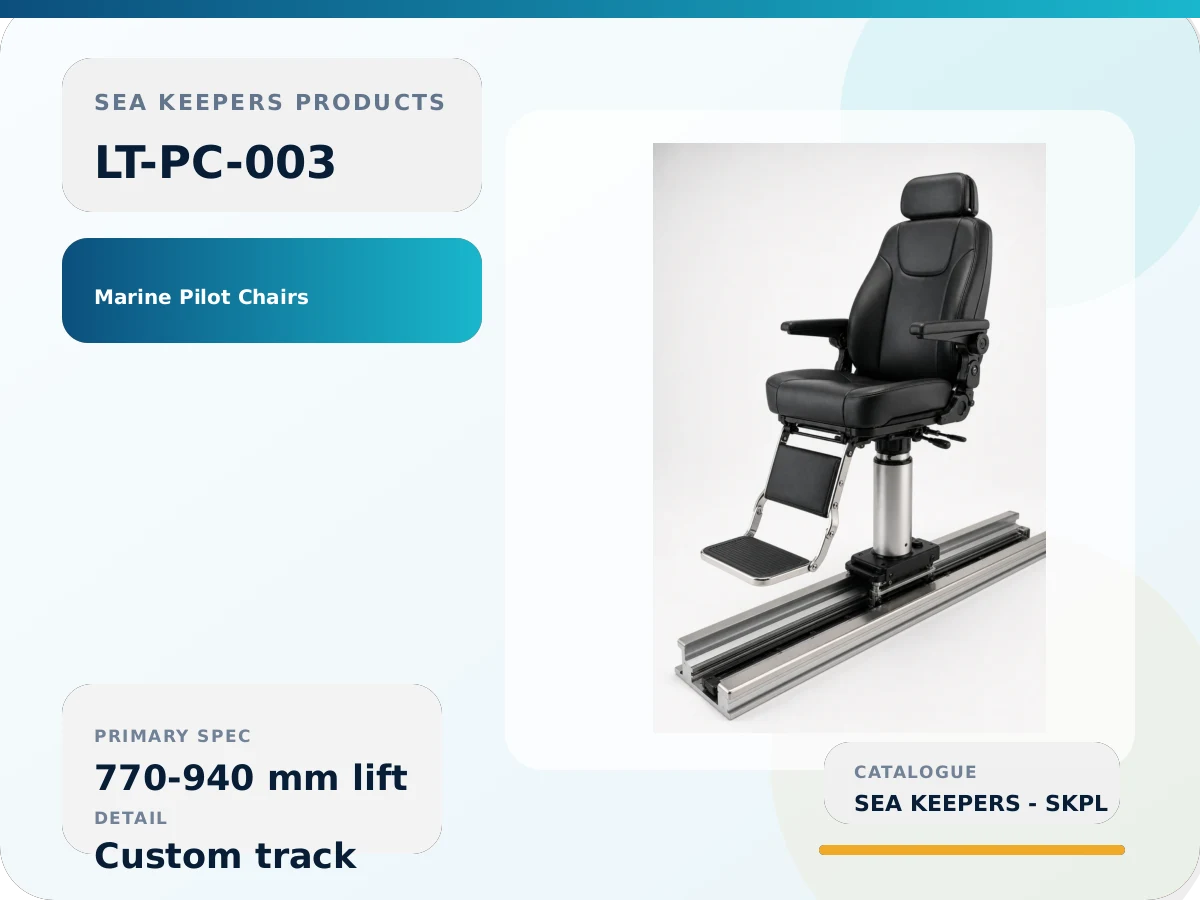

LT-PC-003 Navigation Track Type Chair
Navigation track type chair with custom rail length, pneumatic lift, tilt adjustment, sliding cushion, adjustable backrest, and rotating base.
770-940 mm lift Custom track 120 mm slide
Add to quote Category: Marine Pilot Chairs
Description
LT-PC-003 Navigation Track Type Chair
ModelLT-PC-003
TypeNavigation track type chair
TrackCustomised high-strength aluminium alloy rail
Lift Range770-940 mm
Tilt+/- 12 degrees
Seat Slide120 mm
Backrest Angle85-150 degrees
Rotation360 degrees with 90-degree positioning
Load CapacityApprox. 260 kg
Catalogue SourceLT-PC-003 Spec Drawing.pdf
