Description

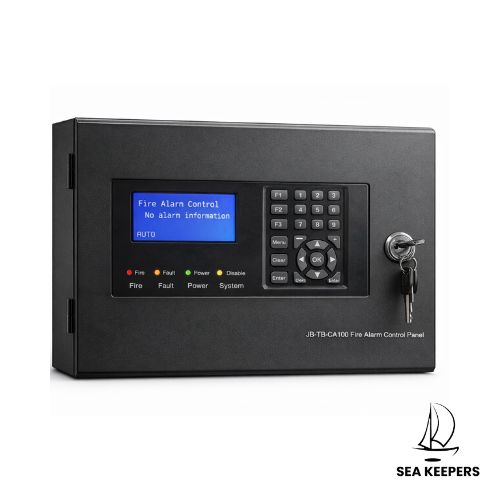

| Fire Alarm Control Panel – CA100 Intelligent | |
|---|---|
| Product Overview | The CA100 Intelligent Fire Alarm Control Panel is a single-loop addressable fire alarm system with a capacity of up to 254 addressable points. It is designed for early fire detection and reliable monitoring in small commercial and residential buildings such as offices, restaurants, shops, and retail outlets. The system offers simple installation, user-friendly operation, and easy maintenance. |
| System Type | Intelligent Addressable Fire Alarm Control Panel |
| Loop Capacity | Single Loop |
| Addressable Devices | Up to 254 devices |
| Power Supply | 90–270 VAC, 50–60 Hz |
| Backup Battery | DC 12V (1 × Sealed Lead-Acid Battery, 12V / 4.5Ah) |
| Wiring Technology | 2-Wire Technology |
| Device Compatibility | Compatible with XHA intelligent and digital devices |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | ≤ 95% RH |
| Dimensions | 320 × 240 × 98 mm |
| Weight | 4.54 kg |
| Applications | Offices, restaurants, retail shops, stores, small commercial buildings, and low-rise facilities. |
| Key Features | Wide input voltage range, intelligent addressable monitoring, reliable battery backup, compact design, easy operation, and low maintenance requirements. |
